Multifunction System

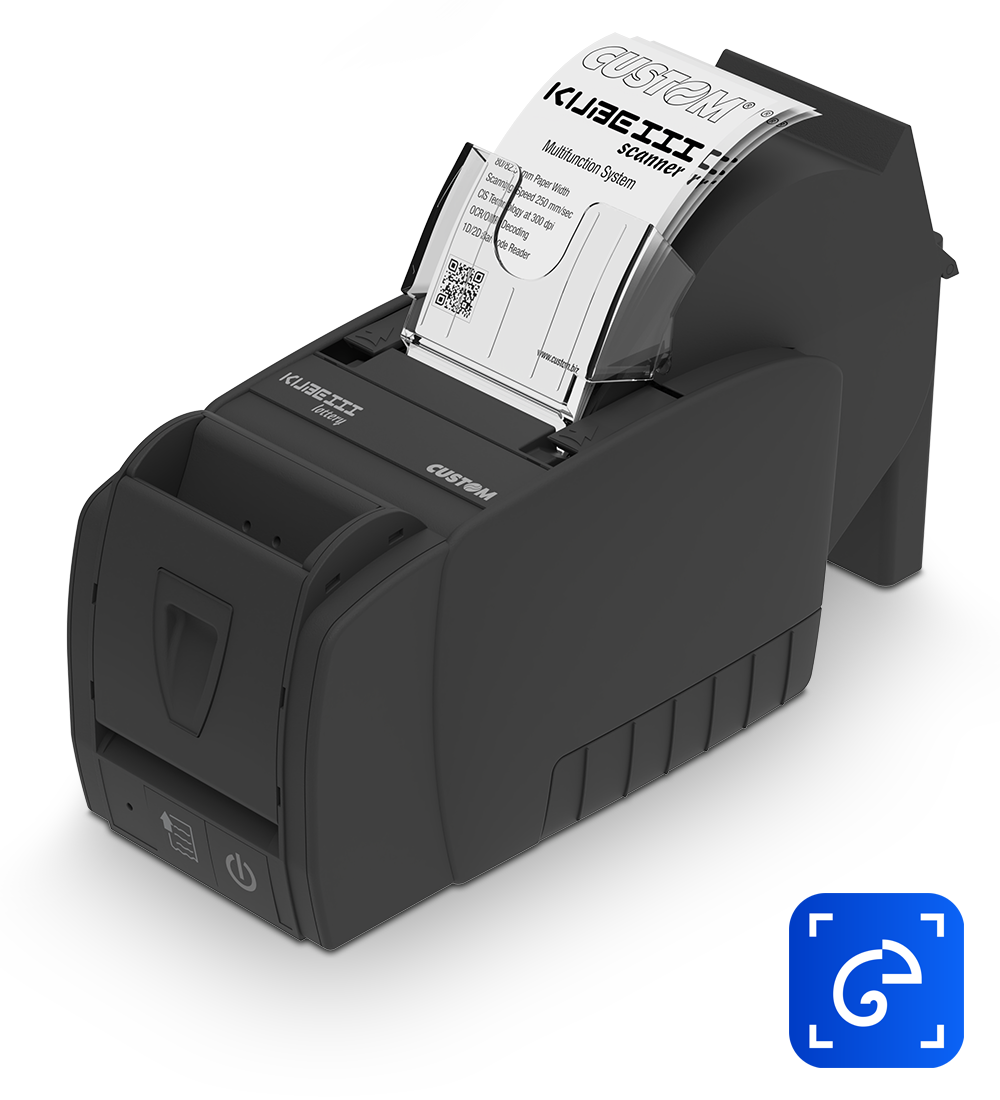

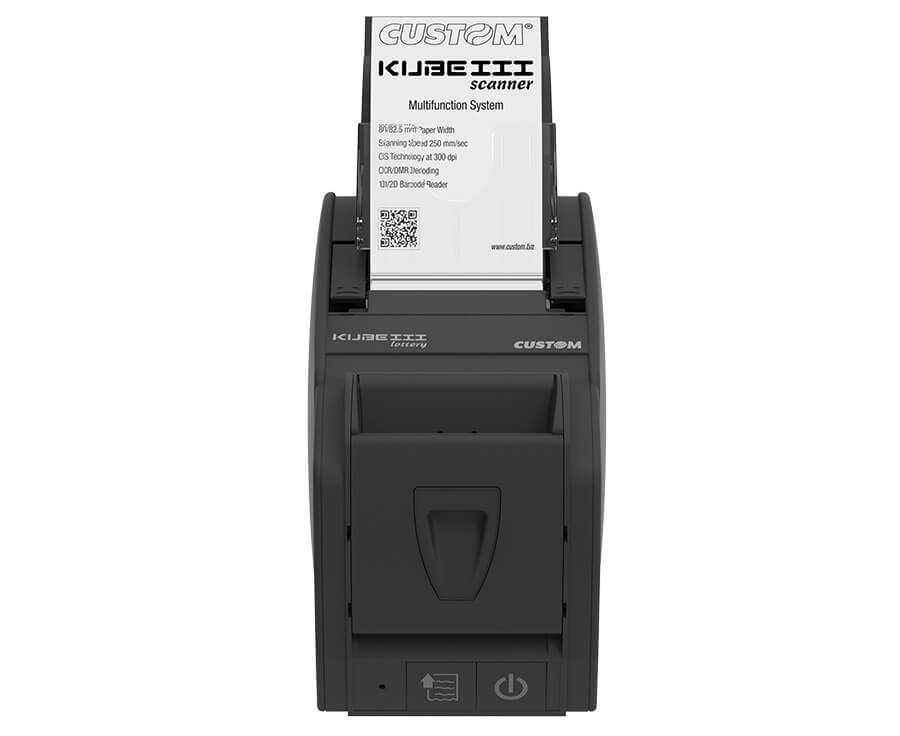

Document scanning, barcode reading, game receipt printing, verification or cancellation of the receipt. KUBEIII SCANNER is the state-of-the-art solution in multifunction systems for Betting and Lottery applications. The new scanner is faster in recognition, thanks to the 300 dpi resolution and the new decoding libraries. The system is able to work with OMR (Optical Marker Recognition) and OCR (Optical Character Recognition) technologies and reading 1D and 2D barcodes. The thermal printer embedded in the scanner, allows to print in graphic format over tickets. KUBEIII SCANNER works with Windows, Linux and Android systems.
PRINTER FEATURES | ||
Paper width | 80/82.5 mm | |
Printing speed | 180 mm/sec | |
Stacker | up to 50 tickets | |
High printing autonomy | 150 mm paper roll diameter | |
Interfaces | USB and Ethernet | |
Cutter | 1.000.000 of cuts | |
Head life | 100km (with recommended paper), 100M pulses (12.5% duty cycle) | |
Font | International True fonts on board | |
SCANNER FEATURES | ||
Technology | CIS (Contact Image Sensor) | |
Resolution | 300 dpi | |
Scan output | Gray Scale / B&W | |
Scanning speed | up to 250 mm/sec | |
Scan width | 82 mm | |
DRIVERS & LIBRARIES | ||
Autoinstalling drivers | Windows® (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Custom Android API |
|
DLL | DLL CuDoubleSidedScannerAPI per .NET DLL CuDoubleSidedScannerAPI per C++ |
|
Libraries | ![]() |
